This 4K UHD LPCM 2.0 Audio Extractor can extract up to 2 channels of LPCM audio from an HDMI source, allowing the user to convert high quality HDMI audio into more convenient analog (LPCM 2.0 only) or optical signals for use with powered speakers or non-HDMI AV receivers. Both the input and output HDMI ports support 4K UHD resolutions up to 4K@60Hz (YUV 4:4:4, 8-bit) and are capable of providing high quality audio and video performance. This unit supports pass-through of HD and standard bitstream formats as well as LPCM 2.0 with audio sampling rates up to 192 kHz. Built in EDID management support allows the user select from multiple EDIDs and, with the use of optional PC software, to edit, upload and download EDID files.

SPECIFICATIONS:
HDMI input and output with 18Gbps (600MHz) 4K UHD support
DVI 1.0 compliant with the use of an HDMI-DVI adaptor
HDCP 1.4 and 2.2 compliant
Supports HD resolutions up to 3840×2160@60 Hz (YUV 4:4:4, 8-bit) & 4096×2160@60 Hz (YUV 4:4:4, 8-bit)
Supports 48-bit Deep Color up to 1080p60
Supports pass-through of LPCM 7.1, bitstream and HD bitstream audio formats over HDMI
Analog audio extraction supports LPCM 2.0 sources
Optical S/PDIF audio extraction supports LPCM 2.0 & bitstream formats
Supports HDMI and S/PDIF audio sampling rates up to 192 kHz
Provides EDID management with EDID bypass and 2 user modifiable EDIDs
PC based EDID management tool support
Supports RS-232 style control via a Virtual COM port over USB

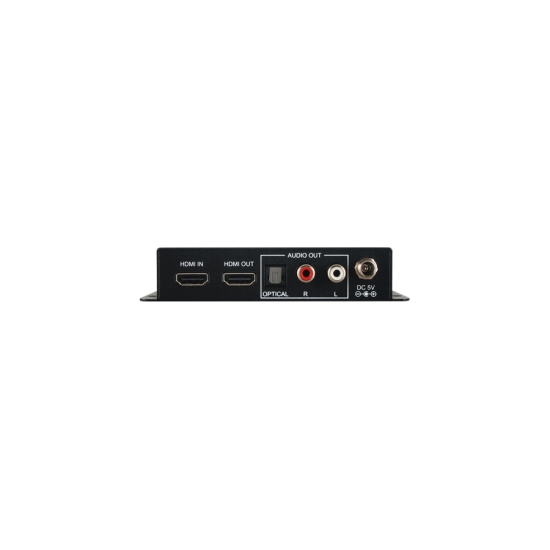

Inputs 1x HDMI [1x Uncompressed AV and Data]; 1x USB Mini-B [1x SERVICE Propriety Data]
Outputs 1x HDMI [1x Uncompressed AV and Data]; 1x TOSLINK [1x OPTICAL 2 Channel LPCM / Dolby Digital / DTS]; 2x RCA [1x Stereo (L/R)]
PSU: 5V/2.6A
Dimensions 128mm [W] x 116mm [D] x 30mm [H]
Net Weight 358g
